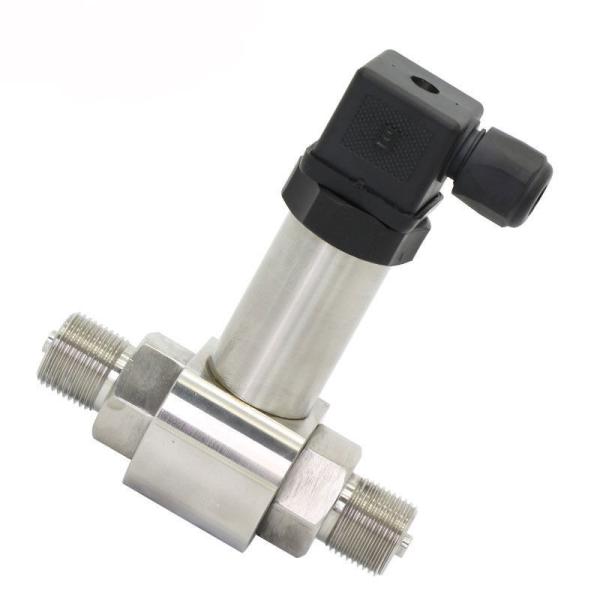

20mA Differential Pressure Sensor

20mA Differential Pressure Sensor

Product Description

4-20mA/0-5V/0-10V /RS485 low cost differential pressure sensor is a high reliability, stability, and accuracy DP transmitters. It is widely used in the field of liquid, gas pressure test, water, oil, and mildly corrosive liquids measurement.

The product material is 316L stainless steel, imported high accuracy silicon pressure sensor, dedicated amplifier and V / I conversion circuit transmitter, the specific anti-high voltage, high current, high magnetic field, polar lead and other characteristics.

4-20mA/0-5V/0-10V /RS485 low cost differential pressure sensor are piezoresistive differential pressure sensor as sensing element. Silicon oil is filled in between die and two diaphragms, when measured differential pressure is added on two diaphragms the pressure could be transferred onto die through silicon oil. Sensor die connects with amplifier circuit through wires, using semi-conductor’s piezoresistive effect, transforming differential pressure signal into electric signal. The whole product is used for differential pressure measurement of petroleum, chemi-industry, power station and hydrology, etc. Designed according to user programmable pattern needs to change according to the situation in the field use the amount of zero and span range.

Sensor	4-20mA/0-5V/0-10V /RS485 low cost differential pressure sensor
Pressure Range:	10~50KPa	51~100KPa		101~200KPa		201~500KPa		501~1000KPa	1~2MPa
High port overload:	30…100 kPa	100…150 kPa		200…350 kPa		400…1000 kPa		1…2 Bar	2…35 Bar
Low port overload:	20…50 kPa	50…100 kPa		150…300 kPa		300…750 kPa		0.75…1.5 Bar	1.5…25 Bar
Max Static Pressure:	1…5 Bar	5…20 Bar		20…30 Bar		25…30 Bar		40…50 Bar	50…100 Bar
Accuracy:	≤±0.25%F.S (high cost);
(Linearity Hysteresis	≤±0.5%F.S;
Repeatability)	≤ ±1.0%F.S Optional
Electronic Wire:	2 Wires		3 Wires				4 wires
Output:	4~20mA		0~5V		0~10 V		RS485 MODBUS
	analog signal		analog signal		analog signal		(digital signal)
Power Supply:	12~36Vdc		9~36Vdc		15~36Vdc (Typical:24 V DC)		10-30Vdc
	(Typical:24 V DC)		(Typical:24 V DC)				(Typical:24 V DC)
Electronic connection:	Fixed cable and water proof IP67 (HPT700-S);
	Terminal Box DIN43650 IP65 (HPT700-H,HPT700-G)
Pressure	1/4’’-18NPT Female hose connection; G1/4’’ Male; G1/2’’ Male; RG=Ø8/ Ø 10gas mouth optional. (by Customized)
connect port:
Remarks:	Special applications request by Customized

Characters:	Applications:
♥ Accuracy: ≤±0.5%F.S.	♥ Industrial course testing and control
♥ Wide working temperature scope	♥ Level measurement and control
♥ Advanced digital temperature compensation.	♥ Service to Oxygen, CO2, Nitrogen
♥ Excellent resistance against impact, overload,	♥ Petrochemical industry
Shock and erosion.	♥ Storage and fuel, Oil, Water Tank applications
♥ Highly static pressure overload	♥ Pump station and water treatment system
♥ Highly strong RFI & EMI resistance	♥ Laboratory equipment
♥ Impact resistance and disturbance	♥ Industrial machinery manufacture
♥ 1.5 times range standard overload.	♥ Automatic detection system
♥ 3 times range burst pressure	♥ Saving water to irrigate
♥ CE approving	♥ And so on
