20mA 10V 60MPa Hydraulic System Barometric Ceramic Pressure Sensor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Supply Ability :	20,000 pcs per month
Price :	Negotiable
Certification :	CE;ISO
Delivery Time :	5-10days
Payment Terms :	L/C, T/T, Western Union

Add to Cart

Product Details
Company Profile

20mA 10V 60MPa Hydraulic System Barometric Ceramic Pressure Sensor

20mA 10V 60MPa Hydraulic System Barometric Ceramic Pressure Sensor

Description

The Pressure Transmitter for General Industrial Application offers excellent quality at an extremely competitive price. The various pressure ranges, pressure connection and output signal required for particular operating conditions are available.

Features

1. Measuring ranges from 0~1kPa to 0~60MPa.
2. Accuracy: 0.2%FS.
3. Output signal: 4~20mA, 0~10V, 0~5V, 1~5V, 0.5~4.5V.
4. Process connection: M20×1.5, G1/4, 1/4 NPT

Specifications

Measuring medium	Gas, liquid
Pressure type	Absolute pressure(A),Sealed pressure(S),Gauge pressure(G)
Measuring range	0~1kPa,2kPa,5kPa,10kPa,20kPa,30kPa,40kPa,50kPa, 100kPa,150kPa,200kPa,300kPa,400kPa,500kPa,700kPa, 1MPa,1.5MPa,2MPa,3MPa,5MPa,6MPa,7MPa,10MPa,15MPa,20MPa, 30MPa,40MPa ,50MPa,60MPa
Power supply	12~36VDC
Output signal	4~20mA,0~5VDC,1~5VDC,0~10VDC,0.5~4.5VDC
Accuracy	0.2%FS,0.5%FS;1.0%FS
Temperature drift	≤±0.015%FS/℃
Long-term stability	≤±0.2%FS/year
Ambient temperature	-30℃~+85℃
Medium temperature	-40~+125℃
Storage temperature	-40℃~+105℃
Process connection	M20×1.5,M14×1.5,M12×1,G1/4,G1/2,1/4NPT or other on request
Overpressure	150%FS
Damage pressure	300%FS
Vibration resistance	5~1000Hz
Shock resistance	50g
Materials	Stainless Steel 1Cr18Ni9Ti Stainless Steel 316
Ingress protection	IP65

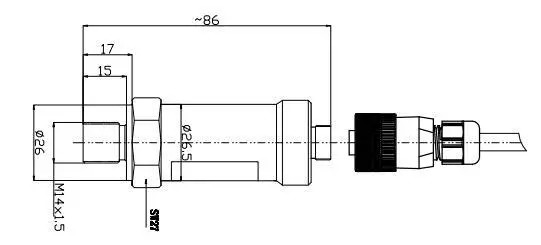

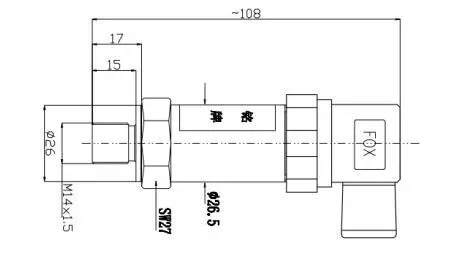

Dimensions in mm

20mA 10V 60MPa Hydraulic System Barometric Ceramic Pressure Sensor

PPM-T126B

20mA 10V 60MPa Hydraulic System Barometric Ceramic Pressure Sensor

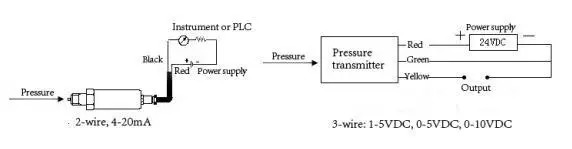

Wiring diagram

20mA 10V 60MPa Hydraulic System Barometric Ceramic Pressure Sensor
