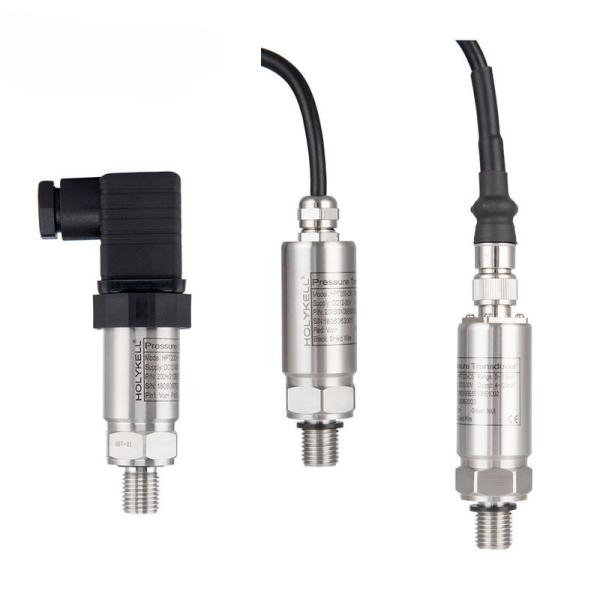

The pressure transmitter,Common pressure sensor applied in the
engine fuel pressure, hydraulic pressure and gas pressure
industries, which is adopt the Flush Ceramic piezoresistive
technology and the advanced circuit design to avoid influences on
the product caused by the temperature, humidity, mechanical fatigue
and medium, thus to improve its permanent stability in the
industrial environment.
Specification
Pressure Range: | -1-0-1 Bar.....600 Bar Optional |
Pressure Type: | Gauge pressure; Negative pressure; Absolute pressure optional |
Accuracy: (Linearity Hysteresis Repeatability) | ≤ ±1.0%F.S ≤ ±0.5%F.S ≤ ±0.25%F.S (Customized) Optional. |
Stability: | Standard: 0.2%F.S±0.05% |
Pressure connect port: | 1/8’’NPT male, 1/4’’NPT male 1/4’’NPT Female, G1/2’’ male,
G1/4’’male/female, 7/16’’-20 UNF male/female are optional. (by Customized) |
| |
Electrical Specification
Output: | 4~20mA | 0~5V | 0~10 V | 0.5~4.5 V | By Customized |
Power Supply: | 12~36 V DC | 12~36 V DC | 15~36Vdc | 5 V DC | By Customized |
| |
Electronic connection: | Terminal Box (DIN43650 Hirschman Connector, IP65) Directly sealed cable IP67; M12 4 Pins connector IP65; Small Hirschman Connector; connection are optional. |
Environment
Working Temp: | -40°C~125°C |
Storage Temp: | -40°C~125°C |
| |
Overload: | 150% F.S. |
Burst Pressure | 200% F.S. |
| |
Applicaion:
- Critical industrial applications
- Petroleum
- Chemi-industry
- Metallurgy
- Power station
- Hydrology, Agriculture
- Harsh environments in the process
- industry
BENIFIT
1. Reducing downtime and maintenance costs, Imported USA TE chip
,High accuracy up to 0.25%
Small temperature drift,automatically compensates for changes in
barometric pressure ,keep sensor running longer by reducing
downtime and maintenance costs
2. Energy-saving and environmental protection
Low-power output signals for battery-operated or solar measuring
systems available,lowest power supply is 3.3V
3. Running well in harsh condition
Short-circuit conditions to protect prevent reverse connection;
Instant voltage overload protection
