7bar Piezo Pressure Sensors

Ask Lasest Price
Brand Name :	OEM
Model Number :
Supply Ability :	20,000 pcs per month
Price :	Negotiable
Certification :	CE;ISO
Delivery Time :	5-10days
Payment Terms :	L/C, T/T, Western Union

Add to Cart

Product Details
Company Profile

7bar Piezo Pressure Sensors

7bar Piezo Pressure Sensors

Product overview:

Pressure sensor is suitable for the oil, water, steam and so on the many kinds of medium environment, such as automobile engine oil pressure, air compressor, pneumatic or hydraulic system, can also be used for other non-corrosive gas, liquid pressure measurement. This product can be used for non-linear correction and temperature compensation in the whole working temperature area, and high precision measurement in the whole working temperature area is realized. To include non-linear, zero temperature drift, sensitivity temperature drift and other errors.

Product features:

Good product stability; Excellent corrosion, wear and vibration resistance; Wide working temperature range and compact size; High cost performance, wear - resistant damage;

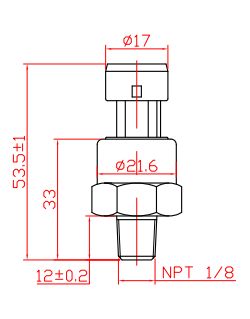

Technical Indicator:

Pressure type:	surface pressure
Measuring range(bar) :	0~ 7bar
Output signal:	0.5~ 5VDC
Power supply:	12VDC
Accuracy:	士1%FS (0~80C)士2%FS (-20~100°C) 士4%FS (-40~125C)
Storage termperature:	-40~125C
The impact: (11mS) :	100g
Pressure overload:	150%FS
Destroy the pressure:	200%FS
Protection grade:	IP65
Maerial:	304 stain steel
Pressure interface:	NPT1/8
