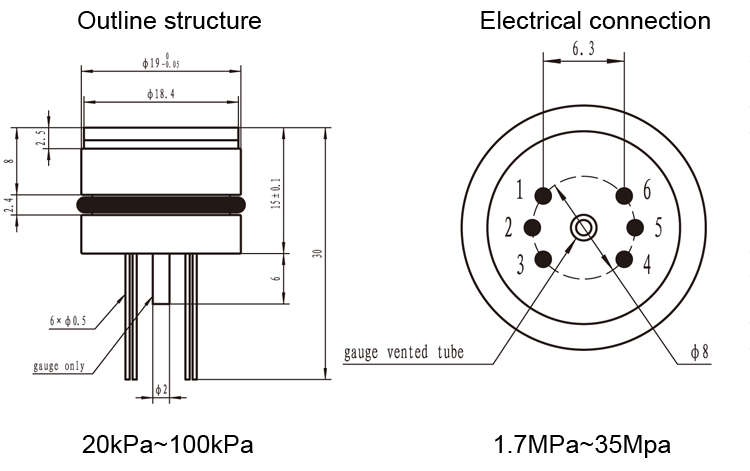

High stable sensor is the piezoresistive pressure sensor with isolated construction and precise compensation. It uses high stable silicon die, housing with outer diameter Ø19mm 316L stainless steel housing. Wider temperature compensation and zero correction are calibrated by laser trimming technics. The measured pressure is transmitting onto silicon die through 316L diaphragm and inner media, to transform the pressure to electric signal.

Main features

• Pressure range: 0~20 kPa...35MPa
• Gauge, absolute, sealed gauge
• Constant current power supply
• Isolated construction, enable to measure various media
• Ø19mm standard pressure sensor
• Full stainless steel 316L
• Wider temperature compensation -10°C~+80°C
• Long-term stability 0.1%FS/year

• Industrial process control
• Level measure
• Gas, liquid pressure measure
• Pressure meter
• Pressure calibrator
• Liquid pressure system and switch
• Refrigeration equipment and air conditioner
• Aviation and navigation inspection

>> Specification
