Anti Lightning High Sensitivity 5V 150MPa Miniature Pressure Sensor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Price :	Negotiable
Certification :	CE;ISO
Delivery Time :	5-10days
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20,000 pcs per month

Add to Cart

Product Details
Company Profile

Anti Lightning High Sensitivity 5V 150MPa Miniature Pressure Sensor

Anti Lightning High Sensitivity 5V 150MPa Miniature Pressure Sensor

Products Description

The exquisite pressure transmitter is made of silicon strain technology and digital compensation amplification circuit in large scale. It has digital temperature compensation in the temperature range of - 40-85 ℃. The temperature drift characteristics can meet most industrial applications. The process connection and sensor are integrated in the overall design. There is no weld and seal ring, which ensures the reliability and long-term stability of the product It has good adaptability to fluctuating voltage and overload pressure.

Features:

● Adopt advanced silicon strain technology

● Small size, high cost performance, high stability, high sensitivity

● 0 ~ 350KPa to 0 ~ 150MPa

● Anti-lightning and anti-radio frequency interference

● Can withstand the destruction pressure of 5 times the range

● Fully welded structure

● Pressure type: gauge pressure

Product Paramenters

Measurement medium:	Various liquids, gases or vapors compatible with 304, 316 or 316L stainless steel
Measuring range:	Gauge presurre: 0-350KPa / 0-150MPa
Accuracy class:	1.0/0.5/0.25/0.1/0.05
Output signal:	4～20mA 1～5V 0～5V 0.5～4.5V
Power supply:	9～36VDC(Two-wire system) 24±5VDC(three-wire system)
Operating temperature:	-50 ~ 80 °C
Environment temperature:	-20～+85℃
Relative humidity:	≤95%(40℃)
Wetted material:	304, 316, 316L
Process connection:	M20 × 1.5, M12 × 1, G1 / 4, G1 / 2 male thread, etc.
Electrical connection:	Four-core shielded cable (protection class IP65), aviation plug, DIN connector

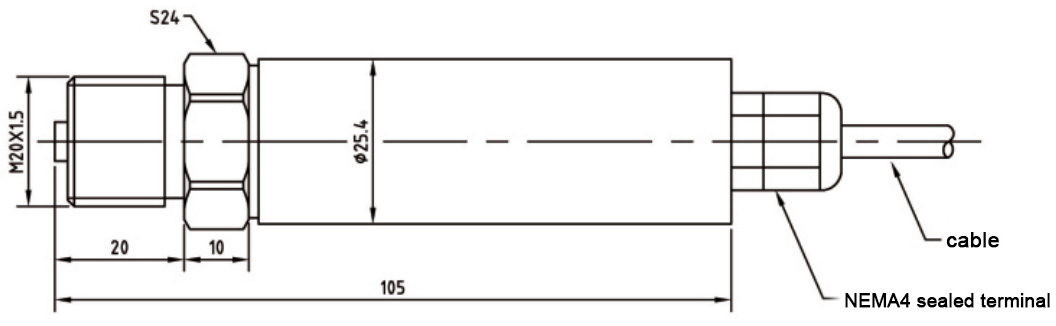

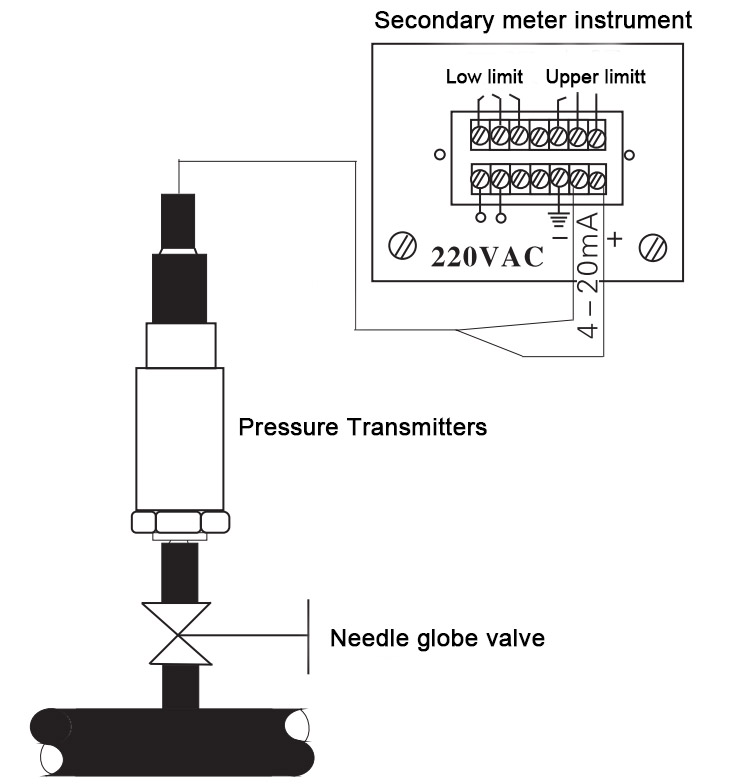

Details Images

Anti Lightning High Sensitivity 5V 150MPa Miniature Pressure Sensor
