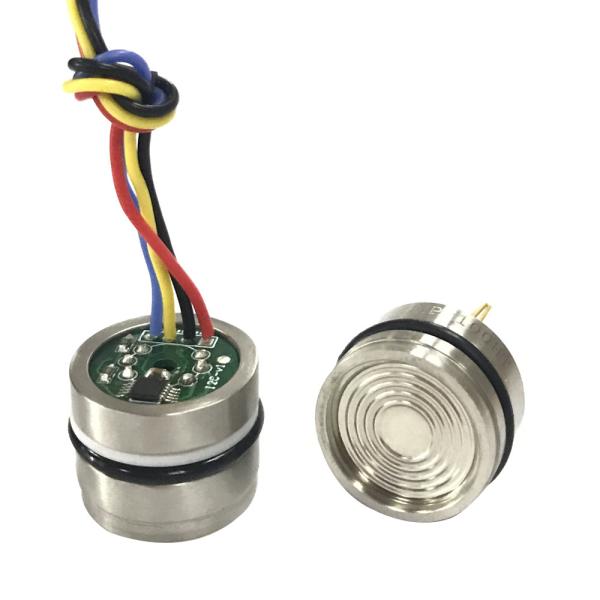

3.6VDC Miniature Pressure Sensor

Features:

Applications:

Outline structure(unit:mm)

3.6VDC Miniature Pressure Sensor

Range<20MP Range≥20MPa

Electrical Connection:

3.6VDC Miniature Pressure Sensor

Specification:

Electrical characteristics
Range	0~100kPa……0~70MPa
Overload	1.5 times FS
Accuracy	±0.1%F.S. BFSL@25℃
Total error	±1.0%F.S. (Includes calibration error and temperature drift effects)
Input voltage	1.8V~3.6VDC
Output	15%~85% (I 2 C Bus protocol)
Working current	≤0.3mA,Standby current is about 0.1μA
Operating temperature	-10℃~80℃
Storage temperature	-40℃~125℃
Long-term stability	±0.2%FS/year

Output Conversion:

Percentage output(%)	Digital quantity (decimal)	Digital quantity (hexadecimal)
0	0	0x000000
10	1677722	0x19999A
15	2516582	0x266666
85	14260633	0xD99999
90	15099494	0xE66666
100	16777215	0xFFFFFF
