Silicone Oil Atmospheric Pressure Sensor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Price :	Negotiable
Certification :	CE;ISO
Delivery Time :	5-10days
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20,000 pcs per month

Add to Cart

Product Details
Company Profile

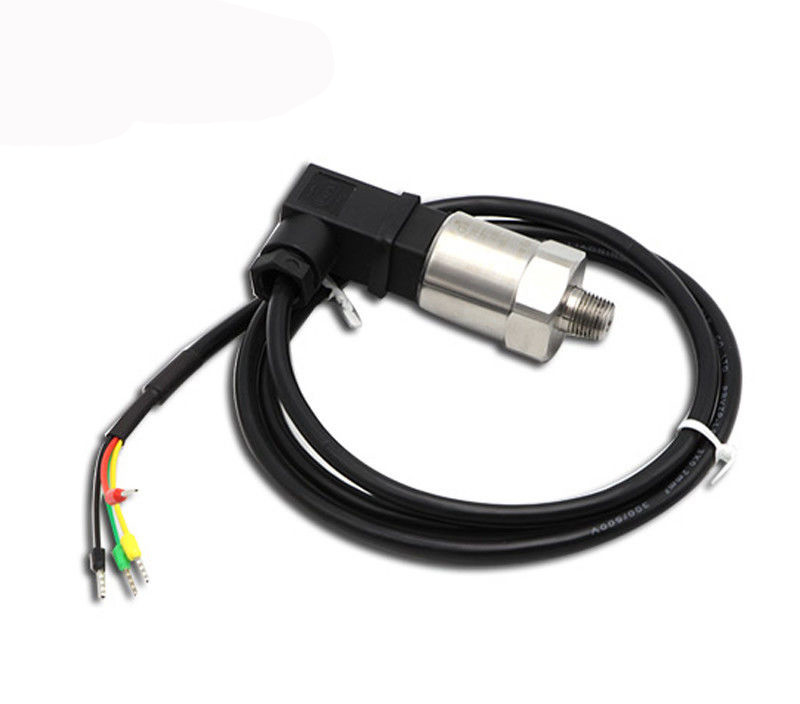

Silicone Oil Atmospheric Pressure Sensor

Silicone Oil Atmospheric Pressure Sensor

Product Description

anti-corrosion and explosion-proof small-profifile pressure transmitter adopts high-precision, high temperature qualitative force-sensitive chip with stainless steel metal diaphragm. After strict precision temperature compensation, signal amplifification, V/I conversion, the pressure parameters are reliably converted into industry standard 4 ~20mA or 0~10mA signal output, widely used in petroleum, chemical, metallurgy, electric power, textile, environmental protection and other fifields.

Range	-0.1MPa...0kPa~10kPa...100MPa

Overload capability	Below 10MPa ≤ 2 times full scale
	10MPa and above ≤1.5 times full scale
Pressure Type	G (gauge pressure), A (absolute pressure), S (sealed gauge pressure)

Accuracy	0.1% (custom), 0.25% (typical), 0.5% (maximum)

Long-term stability	±0.1%FS/year (typical), ±0.2%FS/year (maximum)

Zero temperature drift	±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa)

Sensitivity temperature drift	±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa)

Compensation temperature	0°C~50°C(≤100kPa), -10°C~70°C(>100kPa)

Medium temperature	-40°C~80°C

Power supply	+12 ~ +36V (Default 24V)

Output signal	4mA~20mA, 0V~10V (output range can be customized)

Load Resistance	Current type: ≤ (U-12) / 0.02 (Ω)

Response time	≤1(10~90%)ms

Measuring medium	All corrosive gases, liquids compatible with 316L

Diaphragm material	316L stainless steel

Housing material	1Cr18Ni9Ti

Interface	M20×1.5 or customized

Protection level	IP65 (customizable IP68)

Silicone Oil Atmospheric Pressure Sensor

OEM customization

* Range can be customized

* Support OEM customization

* Strong anti-interference ability

* Diffused silicon core

* High precision,good stability

* Stable performance, high quality media compatibility

Hesman joint

* Hersman joint, PVE engineering plastics,

* Waterproof, dustproof, flame retardant, pressure resistant, anti-corrosion

* Applicable to more industrial sites to ensure the service life of products

Direct line out

* Waterproof design, in accordance with the site IP65 waterproof and water grade shielded wire

* Avoid signal interference and ensure product performance

* Pure copper core, durable, high conductivity

FAQ

Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping
to you . We have the certification of ISO,CE we could send the certification test of our company to you

Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
