4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor

Ask Lasest Price
Brand Name :	OEM
Model Number :
Price :	Negotiable
Certification :	CE;ISO
Delivery Time :	5-10days
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20,000 pcs per month

Add to Cart

Product Details
Company Profile

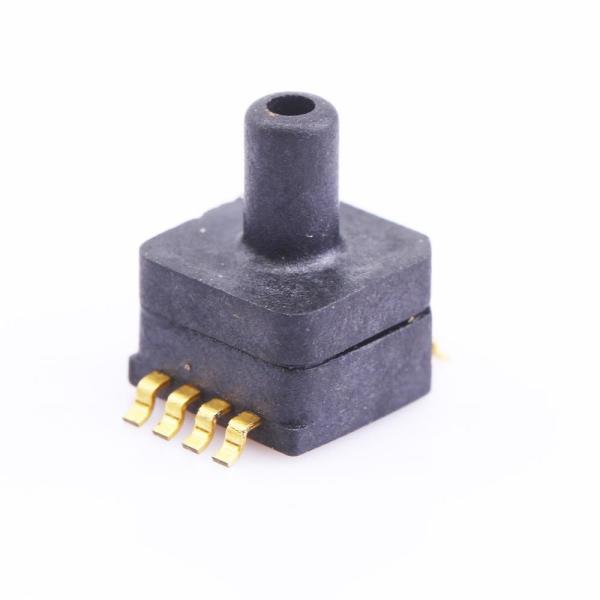

4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor

4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor

Feature

Ranges:-100kPa~0kPa…1000kPa(0PSI~1.5PSI…150PSI)
Perfect Accuracy: ±1.0% of full scale
Gage Type
For Non-corrosive gas or air liquid
Calibrated,Amplified analog output
Temp. Compensated:0℃~+70℃(32℉~+140℉)
Direct application, Low Cost.

Application

For Small household appliances field, such as electric cooker,milk machine,purifier,coffee machine etc, medical instruments and device.
For air pump, air compressor, pressure gauge and meter etc.
For Other fields, such as medical device, automotive, liquid level, diving equipment etc.

Performance Parameter

Unless otherwise specified, measurements were taken with a supply voltage of 5 Vdc at a temperature of 25±1℃ and humidity ranging from 25%~85%.

Item	Data	Unit
Power Supply	5	Vdc
Output Signal	0.5-4.5(or by custom)	Vdc
Accuracy	±1.0	%Span
Zero Temp.Coefficient	±0.03	%FS/℃
Span Temp.Coefficient	±0.03	%FS/℃
Long Term Stability(1year)	±1	%Span
Over Pressure	2X (≤500kPa)	Rated
Over Pressure	1.5X(≥500kPa)	Rated
Compensation Temp.	0 ~ 60/32 ~ 140	℃/℉
Ambient Temp.	-10 ~ 85/14 ~ 185	℃/℉
Storage Temp.	-40 ~ 125/-40 ~ 257	℃/℉

Dimension&Electric Connection(Unit:mm/Inch)

4.5V Gage Type 1000kPa Silicone Water Level Pressure Sensor

PIN Definition

1	3	5	7	2 / 4/ 6 / 8
SDA	VDD	GND	SCL	NC

NOTE:

1, N/C Pins must be left floating

2, Soldering of lead Pins:250’C for 5 sec max.

3, 0.1uf capacitor must be connected between VDD and GND

Notes

1. Implement ESD protection during soldering and assembly.
2. Overload voltage(6.5Vdc) or current(5mA) may burn the ASIC.
3. The medium must be compatible with the pressurized parts.
4. Please contact us for special request on parameter and application.
