60MPa Water Pressure Transmitter

Ask Lasest Price
Brand Name :	OEM
Model Number :
Supply Ability :	20,000 pcs per month
Price :	Negotiable
Certification :	CE;ISO
Delivery Time :	5-10days
Payment Terms :	L/C, T/T, Western Union

Add to Cart

Product Details
Company Profile

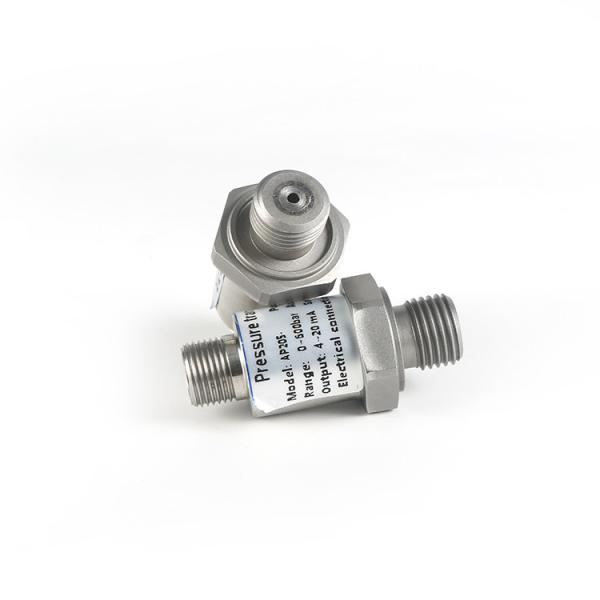

60MPa Water Pressure Transmitter

60MPa Water Pressure Transmitter

Product Description

The pressure transmitter is designed for applications such as air conditioning refrigeration and water treatment control equipment, such as booster pumps, air compressors and air conditioning systems. It is also suitable for a variety of other industrial applications, with a variety of structural forms and diverse output formats. A variety of pressure connections to meet most application requirements. Compact, especially suitable for installation in tight spaces.

Feature:

1. Original European core sensor
2. Monocrystalline silicon pressure chip
3. Accuracy up to 0.1%F.S
4. Fast response time
5. All SS316L welding sealed construction
6. Various hazardous area approvals

Performance Specifications

Range	-100kPa--0~6kPa--60MPa

pressure type	gauge	absolute	seal
Power supply	24VDC		5VDC

Output	4-20ma, 0-10V , 485RTU		1-5V, 0-5V, 0.5-4.5V

Precision level	0.1	0.25	0.5
Temperature coefficient	0.1%FS10℃	0.2%FS10℃	0.25%FS10℃
Temperature influence	0.2%FS(-20--65℃)	0.5%FS(-20--65℃)	1%FS(-20--65℃)
Electrical connection	Direct Lead, M12 Navigation plug,Hirschmann, Parker Connector, Customization

Process connection	G1/8(M), G1/4(M),G1/2(M),NPT1/8(M),NPT1/2(M),NPT1/4(M),M20*1.5(M) Flat diaphragm customization

Diaphragm material	stainless steel 316	Hastelloy C	customization
Explosion-proof performance	Exd II BT 4(optional), only suitable for Direct Lead electrical connection

Ambient temperature	-20℃~80℃

Ambient temperature	-30℃~100℃

Ambient temperature	-40℃~80℃

Degrees of protection	IP65

Insulation resistance	>100MQ/500VDC

Detailed Images
